SQL Viewer

Ilum’s SQL Viewer lets you run your SQL queries directly in the UI, without the need of writing any Scala or Python code. Designed for simplicity, it offers an intuitive interface for running SQL queries, exploring data, and gaining insights quickly and efficiently.

Whether you’re prototyping, analyzing data, or debugging, the SQL Viewer allows you to focus solely on the query logic without managing the underlying code.

It is highly configurable through the UI or Helm deployment values, allowing flexibility in, for example, choosing a different table format, like Delta Lake, Apache Hudi, or Apache Iceberg.

How will it help you?

The SQL Viewer is a powerful tool for reporting and debugging during Spark application development. Instead of building an entire Spark SQL program to query your tables, you can submit SQL statements directly within Ilum’s interface.

For debugging, SQL Viewer is invaluable—eliminating the need to repeatedly write, compile and submit code like:

val dataset = spark.sql("select ...")

Instead, you can interactively test SQL statements without re-creating sessions each time.

Beyond query results, SQL Viewer offers data exploration and visualization tools, along with logs and execution statistics, giving you deeper insights into the query process.

With integration into the Apache Hive Metastore, SQL Viewer provides an accessible, shared environment for running SQL queries—perfectly suited for collaboration across Ilum components.

Deployment

To use the SQL Viewer, you need to deploy Ilum with both SQL Viewer and Hive Metastore enabled. For setup instructions, refer to the Production page.

Once configured, SQL Viewer should be accessible from the sidebar and connected to the Hive Metastore.

Get started with the SQL viewer

Create a sample table

CREATE
OR REPLACE TABLE my_health_data (
    timestamp TIMESTAMP,
    heartrate INT,
    handmotion INT,
    sleepphase VARCHAR(20)
);

Insert values

INSERT INTO my_health_data (timestamp, heartrate, handmotion, sleepphase)
VALUES (CAST('2024-10-01 00:00:00' AS TIMESTAMP), 70, 1, 'awake'),
       (CAST('2024-10-01 01:00:00' AS TIMESTAMP), 68, 0, 'light'),
       (CAST('2024-10-01 02:00:00' AS TIMESTAMP), 65, 0, 'deep'),
       (CAST('2024-10-01 03:00:00' AS TIMESTAMP), 64, 1, 'deep'),
       (CAST('2024-10-01 04:00:00' AS TIMESTAMP), 66, 0, 'light'),
       (CAST('2024-10-01 05:00:00' AS TIMESTAMP), 72, 1, 'awake'),
...

Run a SELECT query

SELECT sleepphase, avg(heartrate)
FROM my_health_data
GROUP BY sleepphase

Observe tables and views in the "resources" tab

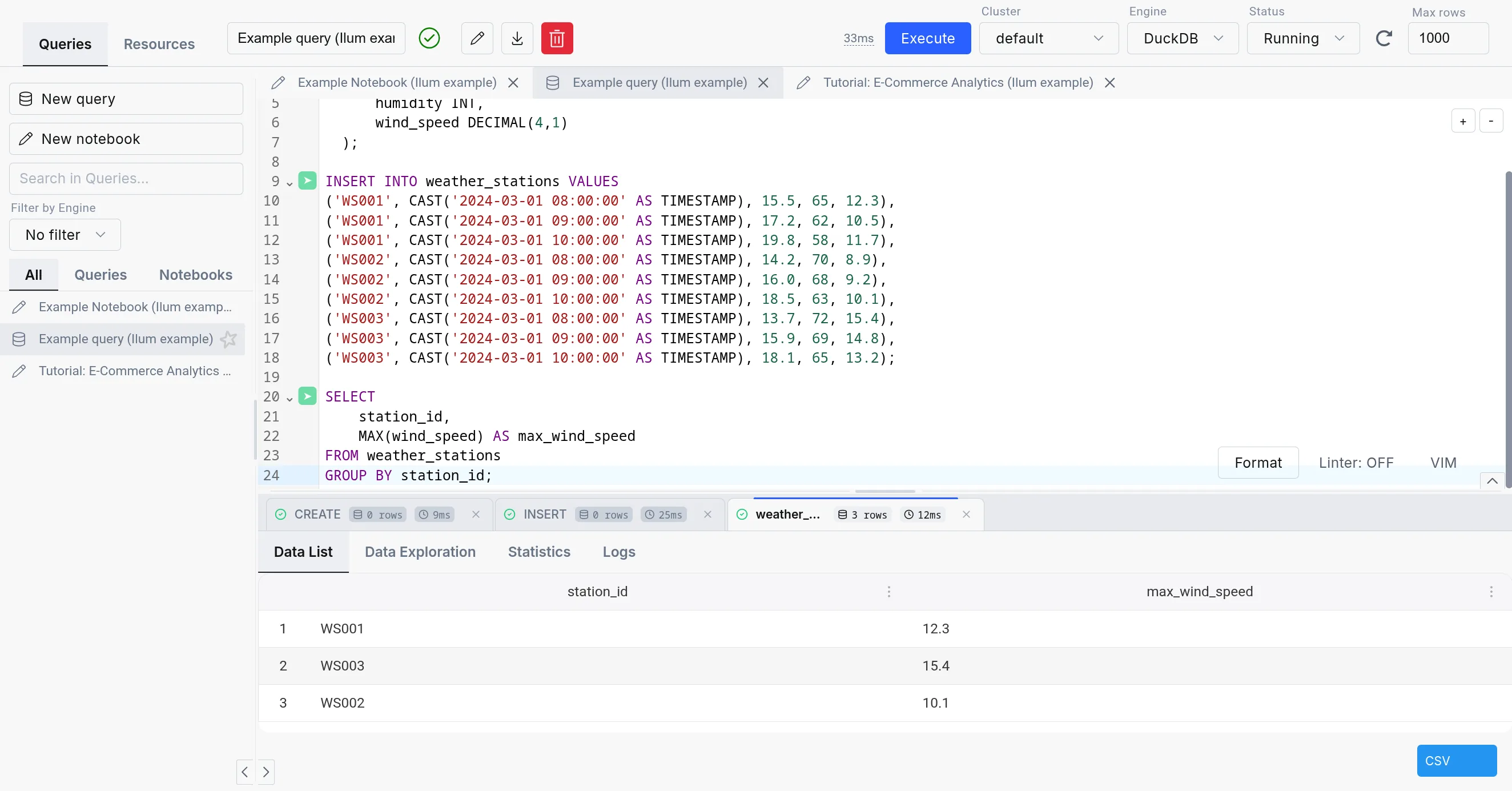

See the results of a query
Use the data exploration tool
Examine logs and statistics

Statistics provide information about time spent on query execution and may be useful for query optimization.

Logs can be useful for query debugging and general problem detection.

Loading example query and notebook

Ilum provides an example query and notebook to help new users get started quickly. Example query and notebook loading is enabled by default. However, you can disable it by using --set ilum-core.examples.sqlQuery=false (disables loading query) and --set ilum-core.examples.sqlNotebook=false (disables loading notebook).

Alternative engines

Trino

Trino is a high-performance, distributed SQL query engine designed for big data analytics. It offers a compelling alternative to Spark SQL, particularly for lighter, ad-hoc workloads where query execution speed and low latency are priorities. For complete configuration details, see the Trino documentation.

The trade-off is that Spark SQL engines are launched on-demand, whereas Trino must run continuously in the background, consuming cluster resources.

warning

Built-in Trino is not enabled by default. To set it up, you need to configure it in your helm values.

Connecting the built-in Trino to the Hive Metastore

While Trino can operate independently, connecting it to Ilum’s Hive Metastore provides seamless access to the same data available in Spark. This integration requires creating a dedicated catalog in Trino that references the Hive Metastore, uses S3 storage, and supports a wide variety of formats, just as Spark does.

By default, Trino in Ilum comes with a ilum-delta catalog, which is configured with a default Hive Metastore connection, default S3 storage, and Delta Lake support.

This was done by setting the following configuration in the values.yaml file of the main Ilum helm chart:

ilum-sql:
  config:
    trino:
      enabled: true
      catalog: ilum-delta

trino:
  enabled: true
  catalogs:
    ilum-delta: | # Name of the created catalog
      connector.name=delta_lake # Name of the connector (Delta Lake this time)
      delta.metastore.store-table-metadata=true # Makes Trino store metadata in the Hive Metastore
      delta.register-table-procedure.enabled=true # Enables table registration procedure in Trino
      hive.metastore.uri=thrift://ilum-hive-metastore:9083 # Hive Metastore URI
      fs.native-s3.enabled=true # enabling S3 support
      s3.endpoint=http://ilum-minio:9000 # S3 endpoint
      s3.region=us-east-1 # S3 region
      s3.path-style-access=true # S3 path style access
      s3.aws-access-key=minioadmin # S3 access key
      s3.aws-secret-key=minioadmin # S3 secret key

warning

These values only reflect the default configuration. If you have a different setup, you need to adjust the values accordingly.

External Trino instance

It is also possible to connect your own Trino instance by supplying the following helm values:

ilum-sql.config.trino.enabled=true
# A URL pointing to a Trino coordinator
ilum-sql.config.trino.url=http://ilum-trino:8080
# A name of the base catalog you want to use
ilum-sql.config.trino.catalog=system

Tips and Good practices

Using external SQL clients with JDBC

While SQL Viewer works purely in the browser, you can also connect your Ilum SQL to external environments that support Hive / Spark JDBC drivers. This way, you can run queries on your Ilum data from your favorite SQL client or BI tool.

To do this, set up a JDBC connection with the following connection string:

jdbc:hive2://<ilum-sql-host>:<thrift-binary-port>/<database-name>;?spark.ilum.sql.cluster.id=<cluster-id>

Where:

<ilum-sql-host> is the hostname of your Ilum SQL service component (e.g., ilum-sql-headless or ilum-sql-thrift-binary)
<thrift-binary-port> is the port on which the Thrift service is exposed (default is 10009)
<database-name> is the name of the database you want to connect to (put default there)
<cluster-id> is the ID of the Spark cluster you want to connect to (you can find it in the Ilum Ui)

Using the SQL Viewer on datasets from other Ilum’s components

SQL Viewer creates tables in the Hive Metastore by default, which means that any Spark resources, which also use the same metastore, will be able to see these tables.

A job which uses a metastore normally has the following configuration:

spark.sql.catalogImplementation=hive
spark.hadoop.hive.metastore.uris=thrift://<hive-metastore-host>:<hive-metastore-port>
# storage location for the metastore (e.g., s3)
spark.hadoop.fs.s3a.access.key=<access-key>
spark.hadoop.fs.s3a.secret.key=<secret-key>
spark.hadoop.fs.s3a.endpoint=<s3-endpoint>
spark.hadoop.fs.s3a.path.style.access=true
spark.hadoop.fs.s3a.fast.upload=true

We can see that the uri of the metastore is provided and a shared storage location is used.

SQL viewer's resources tab An example of a component that also uses the metastore is the Ilum Table Explorer.

Make use of Spark's optimization elements

Spark SQL offers several optimization features that can significantly improve your query performance through partitioning, clustering, and appropriate storage formats. These optimization techniques help Spark process queries more efficiently, especially when dealing with large datasets, by minimizing the amount of data that needs to be scanned and improving data organization on disk.

The following example shows a table definition that incorporates several optimization techniques:

Partitioning the table by the date and country columns, which allows Spark to skip irrelevant partitions
Clustering data by userid to improve data locality for related rows
Sorting the data by viewTime for more efficient range queries
Organizing data into buckets for better distribution
Using the PARQUET format which is optimized for columnar storage and efficient querying

CREATE TABLE page_view
(
    viewTime     INT,
    userid       BIGINT,
    page_url     STRING,
    referrer_url STRING,
    friends      ARRAY<BIGINT>,
    properties   MAP<STRING, STRING>,
    dt           STRING,
    country      STRING
) COMMENT 'This is the page view table'
PARTITIONED BY(dt, country)
CLUSTERED BY(userid) SORTED BY(viewTime) INTO 32 BUCKETS
STORED AS PARQUET

A similar effect can be achieved by using features provided by alternative table formats, which are discussed below

Use Spark SQL extensions to increase the performance of your queries

Spark SQL allows you to use various SQL extensions to improve the built-in SQL functionality. This is done via the spark.sql.extensions property. For example, you can add the Delta Lake extension, which provides additional features for working with Delta tables.

However, this property can also be used to enable other extensions, such as an SQL optimization extension for Spark execution engines. To enable it, either:

Use one of the newer Ilum Spark images
Add the JAR file of the extension from the Maven repository: org.apache.kyuubi:kyuubi-extension-spark-<SPARK_VERSION>_<SCALA_VERSION>:<KYUUBI_VERSION>
Modify the container image of your Spark and add the JAR file to the classpath

This will allow you to add the extension to your SQL engine as follows: spark.sql.extensions=org.apache.kyuubi.sql.KyuubiSparkSQLExtension. This property is a comma-separated list of extensions, so you can add multiple ones.

Save Queries, import and export SQL queries

The SQL Viewer allows you to save your queries for later use, as well as import and export them.

SQL viewer's saving / import / export functionality

Make use of More Advanced Data Formats: Apache Iceberg, Apache Hudi and Delta Tables

Delta Tables

Delta Lake is an open-source storage layer that brings ACID transactions to Apache Spark and big data workloads. It uses Delta Tables as its core format, combining Parquet files with transaction logs. These logs keep track of table versions, capture DML operations, and handle concurrency with locks.

In simple terms, each operation on a partition creates a new version, preserving the previous one for easy rollback if needed. A transaction log file helps these versions to manage locking and version control, ensuring data consistency.

Delta Lake is straightforward to use and an excellent choice for integrating adding additional features to your Ilum environment.

For more details on Delta Lake’s concurrency management with OCC (Optimistic Concurrency Control), and how it integrates streaming and batch writes, we recommend visiting the Delta Lake Documentation.

Features:

ACID properties maintenance
support for update, delete, and merge operations
schema evolution: altering tables
versioning: ability to time-travel to previous versions of the dataset
better optimization in comparison to traditional formats
integration of these features for both streaming and batches

How to use Delta Tables?

By default, Delta Tables are enabled inside Ilum’s SQL Viewer. The following configurations are set for you:

spark.sql.extensions=io.delta.sql.DeltaSparkSessionExtension
spark.sql.catalog.spark_catalog=org.apache.spark.sql.delta.catalog.DeltaCatalog
spark.databricks.delta.catalog.update.enabled=true

Therefore, you can make use of Delta Tables inside your SQL Viewer without any extra steps.

Create a Delta Table

CREATE TABLE my_health_data_delta
(
    timestamp  TIMESTAMP,
    heartrate  INT,
    handmotion INT,
    sleepphase VARCHAR(20)
) USING DELTA;

Run some DML operations

INSERT INTO my_health_data_delta (timestamp, heartrate, handmotion, sleepphase) VALUES
(CAST('2024-10-01 00:00:00' AS TIMESTAMP), 70, 1, 'awake'),
(CAST('2024-10-01 01:00:00' AS TIMESTAMP), 68, 0, 'light'),
(CAST('2024-10-01 02:00:00' AS TIMESTAMP), 65, 0, 'deep'),
(CAST('2024-10-01 03:00:00' AS TIMESTAMP), 64, 1, 'deep'),
(CAST('2024-10-01 04:00:00' AS TIMESTAMP), 66, 0, 'light');

DELETE FROM my_health_data_delta
WHERE timestamp = '2024-10-01 02:00:00';

UPDATE my_health_data_delta
SET heartrate = 50
WHERE timestamp = '2024-10-01 03:00:00';

Look at the version history and details
```
DESCRIBE HISTORY my_health_data_delta
```

Use time and version travel functionality

SELECT *
FROM my_health_data_delta VERSION AS OF 1

Or to travel to a specific date (e.g., one-day back):

SELECT *
FROM my_health_data_delta TIMESTAMP AS OF date_sub(current_date(), 1)

Cleaning up

While Delta Tables are optimized for performance, they can accumulate a large number of files over time. The VACUUM operation helps to clean up these files and optimize the table. You can read about it here.
```
VACUUM my_health_data_delta
```
Or to see which files will be deleted (up to 1000):
```
VACUUM my_health_data_delta DRY RUN
```

Apache Hudi

While Apache Hudi is similar to Delta Lake, it has its unique advantages. In Apache Hudi, each partition is organized into file groups. Each file group consists of slices, which contain data files and accompanying log files. The log files record actions and affected data, allowing Hudi to optimize read operations by applying these actions to the base file to produce the latest view of the data.

To streamline the process, configuring Compaction operations is essential. Compaction creates a new slice with an updated base file, improving performance.

This structure, along with Hudi’s extensive optimization, enhances write efficiency, making it faster than alternative formats in certain scenarios. Furthermore, Hudi supports NBCC (Non-blocking Concurrency Control) instead of OCC (Optimistic Concurrency Control), which is more effective in environments with high concurrent writes.

SQL Hudi Architecture

In summary, Apache Hudi is well-suited for environments with heavy concurrent write operations and offers more control over custom optimizations, though it may be less user-friendly than Delta Lake.

To learn more about it, you should visit Apache Hudi Documentation Page

How to use Apache Hudi?

Unlike Delta Lake, the Apache Hudi is not preconfigured; therefore, you will need to change the cluster configuration and add the following properties:

{
  "spark.jars.packages": "org.apache.hudi:hudi-spark3.5-bundle_2.12:0.15.0",
  "spark.serializer": "org.apache.spark.serializer.KryoSerializer",
  "spark.sql.catalog.spark_catalog": "org.apache.spark.sql.hudi.catalog.HoodieCatalog",
  "spark.sql.extensions": "org.apache.spark.sql.hudi.HoodieSparkSessionExtension",
  "spark.kryo.registrator": "org.apache.spark.HoodieSparkKryoRegistrar"
}

Remember to make sure that the version of the Hudi-spark’s jar is matching the version of the Spark you’re using.

Additionally, since the jar package is not preinstalled, you may face the issue of JVM Heap Out Of Memory during engine initialization. To read more about this issue and how to fix it, please refer to the Troubleshooting section.

Create a Hudi Table

CREATE TABLE my_sales_data_hudi (
    sale_id STRING,
    sale_date TIMESTAMP,
    product_id STRING,
    quantity INT,
    price DECIMAL(10, 2)
) USING HUDI
TBLPROPERTIES (
    type = 'mor',
    primaryKey = 'sale_id'
);

Notice the type = 'mor' property, which stands for Merge on Read. This property changes the type of the table, which balances optimization between read and write operations.

Perform DML operations

INSERT INTO my_sales_data_hudi (sale_id, sale_date, product_id, quantity, price) VALUES
('S001', CAST('2024-10-01 10:00:00' AS TIMESTAMP), 'P001', 10, 99.99),
('S002', CAST('2024-10-01 11:00:00' AS TIMESTAMP), 'P002', 5, 49.99),
('S003', CAST('2024-10-01 12:00:00' AS TIMESTAMP), 'P003', 20, 19.99),
('S004', CAST('2024-10-01 13:00:00' AS TIMESTAMP), 'P004', 15, 29.99),
('S005', CAST('2024-10-01 14:00:00' AS TIMESTAMP), 'P005', 8, 39.99);

UPDATE my_sales_data_hudi
SET price = 89.99
WHERE sale_id = 'S001';

DELETE FROM my_sales_data_hudi
WHERE sale_id = 'S003';

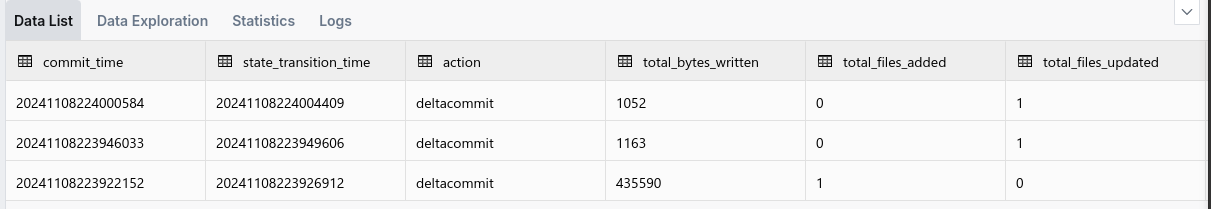

List the commits
```
CALL show_commits (table => 'my_sales_data_hudi', limit => 5)
```
Notice here the commit_time column, which shows the time of the commit. We can use this value to perform time travel.
Use the time travel functionality
```
CALL rollback_to_instant(table => 'my_sales_data_hudi', instant_time => '<commit-time-from-last-step>');
```
This command will revert the table to the state it was in at the specified commit time. Keep in mind that you can reverse only the latest commit, so if you want to go back further, you need to perform multiple rollbacks.

Apache Iceberg

Apache Iceberg is a high-performance table format specifically designed for data lakes, offering unique capabilities compared to other formats. Built around a distinct architecture, Iceberg uses snapshots to manage table states, avoiding reliance on traditional transaction logs. This snapshot-based design captures the entire state of a table at specific points in time.

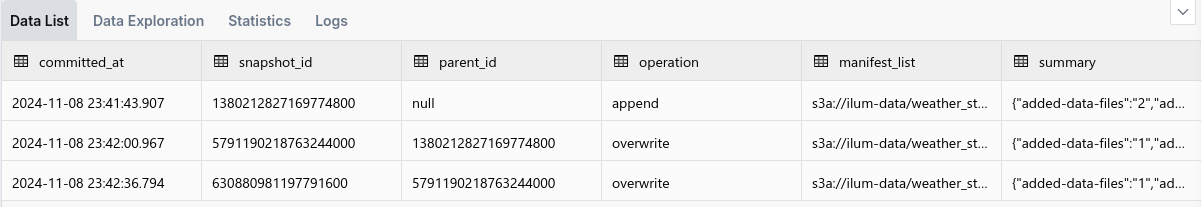

Each snapshot holds a manifest list, which in turn references multiple manifests. These manifests organize pointers to specific data files and hold relevant metadata, enabling Iceberg to efficiently track changes without duplicating data files across snapshots. This approach optimizes storage, as snapshots can reuse existing data files, reducing redundancy.

Iceberg also provides powerful features like branching and tagging, allowing users to create branches of tables and assign human-readable tags to snapshots. These features are essential for version control, enabling teams to manage concurrent updates and test changes before committing them to production.

With flexible data organization options and robust versioning capabilities, Apache Iceberg enables scalable, performant data management for modern data lakes.

SQL Iceberg branching

How to use Apache Iceberg?

Unlike Delta Lake, the Apache Hudi is not preconfigured; therefore, you will need to change the cluster configuration and add the following properties:

{
  "spark.jars.packages": "org.apache.iceberg:iceberg-spark-runtime-3.5_2.12:1.6.1",
  "spark.sql.extensions": "org.apache.iceberg.spark.extensions.IcebergSparkSessionExtensions",
  "spark.sql.catalog.spark_catalog": "org.apache.iceberg.spark.SparkSessionCatalog",
  "spark.sql.catalog.spark_catalog.type": "hive",
  "spark.sql.catalog.spark_catalog.uri": "thrift://ilum-hive-metastore:9083"
}

Remember to make sure that the version of the Iceberg’s jar is matching the version of the Spark you’re using and that the Hive Metastore is available at the specified URI.

Create an Iceberg Table:

CREATE TABLE weather_stations
(
    station_id STRING,
    reading_time TIMESTAMP,
    temperature DECIMAL(4,1),
    humidity INT,
    wind_speed DECIMAL(4,1)
) USING iceberg

Insert data into the table

INSERT INTO weather_stations VALUES
('WS001', CAST('2024-03-01 08:00:00' AS TIMESTAMP), 15.5, 65, 12.3),
('WS001', CAST('2024-03-01 09:00:00' AS TIMESTAMP), 17.2, 62, 10.5),
('WS001', CAST('2024-03-01 10:00:00' AS TIMESTAMP), 19.8, 58, 11.7),
('WS002', CAST('2024-03-01 08:00:00' AS TIMESTAMP), 14.2, 70, 8.9),
('WS002', CAST('2024-03-01 09:00:00' AS TIMESTAMP), 16.0, 68, 9.2),
('WS002', CAST('2024-03-01 10:00:00' AS TIMESTAMP), 18.5, 63, 10.1),
('WS003', CAST('2024-03-01 08:00:00' AS TIMESTAMP), 13.7, 72, 15.4),
('WS003', CAST('2024-03-01 09:00:00' AS TIMESTAMP), 15.9, 69, 14.8),
('WS003', CAST('2024-03-01 10:00:00' AS TIMESTAMP), 18.1, 65, 13.2);

Create a tag from the current snapshot

ALTER TABLE weather_stations CREATE TAG `initial_state`

Make some modifications to the data

UPDATE weather_stations
SET
  temperature = 16.5
WHERE
  station_id = 'WS001'
  AND reading_time = CAST('2024-03-01 08:00:00' AS TIMESTAMP)

DELETE FROM weather_stations WHERE station_id = 'WS002'

List all the snapshots
```
SELECT * FROM spark_catalog.default.weather_stations.snapshots
```
Save the timestamp (commited_at) of the snapshot you want to time travel to for later.

Get the history

SELECT * FROM spark_catalog.default.weather_stations.history

Rollback to a specific tag

CALL spark_catalog.system.set_current_snapshot (
  table => 'spark_catalog.default.weather_stations',
  ref => 'initial_state'
)

Time travel to a specific snapshot

SELECT * FROM weather_stations TIMESTAMP AS OF <timestamp-from-step-5>

How to use UDFs in the SQL viewer?

UDFs (User Defined Functions) are a powerful feature in SQL that allows you to define custom functions to use in your queries. They are also supported in the SQL Viewer, allowing you to extend the functionality of your queries.

Create a class for your UDF

package example

import org.apache.hadoop.hive.ql.exec.UDF

class ScalaUDF extends UDF {
  def evaluate(str: String): Int = {
    str.length()
  }
}

Make sure to include the necessary dependency of hive-exec:3.1.3 in your project:

<dependency>
    <groupId>org.apache.hive</groupId>
    <artifactId>hive-exec</artifactId>
    <version>3.1.3</version>
</dependency>

Make a jar package and put it into your distributed storage

Make sure to remember the path to your jar file.
Add it to the SQL viewer spark session
```
ADD JAR '<the-path-to-your-jar-file>'
```

Create a function, linked to udf you defined

CREATE
OR REPLACE FUNCTION ScalaUDF as 'example.ScalaUDF'

Use it in a query

SELECT name, ScalaUDF(name)
FROM newtablename

Troubleshooting

It is useful to know that when executing SQL queries from the SQL Viewer page, the SQL execution engines are visible as normal Ilum Jobs. This means that you can monitor their state, check logs and statistics, just like any other job in the "Jobs" tab.

JVM Heap Out Of Memory during spark-submit

If in engine’s launch logs, you find an error like this:

Exception in thread "main" io.fabric8.kubernetes.client.KubernetesClientException: Java heap space
    at io.fabric8.kubernetes.client.dsl.internal.OperationSupport.waitForResult (OperationSupport.java:520)
    at io.fabric8.kubernetes.client.dsl.internal. OperationSupport.handleResponse(OperationSupport.java:535)
    ...
    at org.apache.spark.deploy.SparkSubmit$.main(SparkSubmit.scala:1129)
    at org.apache.spark.deploy.SparkSubmit.main(SparkSubmit.scala)
Caused by: java.lang.OutOfMemoryError: Java heap space
    ...

It is likely caused by the default JVM heap size of Ilum’s internal spark-submit being too small for your task.

To fix this, you can switch to the External Spark Submit. This way, the spark submit process will not be constrained to Ilum’s pod resources.

How will it help you?​

Deployment​

Get started with the SQL viewer​

Loading example query and notebook​

Alternative engines​

Trino​

Connecting the built-in Trino to the Hive Metastore​

External Trino instance​

Tips and Good practices​

Using external SQL clients with JDBC​

Using the SQL Viewer on datasets from other Ilum’s components​

Make use of Spark's optimization elements​

Use Spark SQL extensions to increase the performance of your queries​

Save Queries, import and export SQL queries​

Make use of More Advanced Data Formats: Apache Iceberg, Apache Hudi and Delta Tables​

Delta Tables​

Features:​

How to use Delta Tables?​

Apache Hudi​

How to use Apache Hudi?​

Apache Iceberg​

How to use Apache Iceberg?​

How to use UDFs in the SQL viewer?​

Troubleshooting​

JVM Heap Out Of Memory during spark-submit​
