Orchestrating Spark Jobs with Apache Airflow

Example Airflow DAG

Apache Airflow is a platform for programmatically authoring, scheduling, and monitoring workflows. It allows you to define workflows as directed acyclic graphs (DAGs) of tasks, where each task represents a single unit of work.

In the context of Ilum, Airflow serves as the primary orchestration layer for Apache Spark jobs running on Kubernetes. By leveraging the LivyOperator, Airflow can submit batch jobs directly to Ilum's internal Livy Proxy, which handles the lifecycle of the Spark driver and executors.

Airflow is designed to be highly extensible, allowing you to create custom operators and hooks to interact with various systems and services. It is widely used in the data engineering community for orchestrating complex data pipelines and workflows.

Integration Architecture​

Understanding the interaction between Airflow and Ilum is crucial for debugging and optimization. The integration relies on the standard LivyOperator communicating with Ilum's Livy Proxy.

  1. DAG Trigger: The Airflow Scheduler triggers a DAG execution based on time or an external event.
  2. Task Execution: The KubernetesExecutor spawns a worker pod for the task.
  3. Job Submission: The worker executes the LivyOperator, which sends a POST request to the Ilum Livy Proxy endpoint.
  4. Ilum Translation: Ilum receives the request, translates the Livy specification into a Kubernetes CRD (Custom Resource Definition) for the Spark Application.
  5. Spark Launch: Ilum schedules the Spark Driver pod on the Kubernetes cluster.
  6. Monitoring: The LivyOperator polls the proxy for job status updates until completion.

This architecture ensures that Airflow remains lightweight, managing only the orchestration logic, while the heavy lifting of Spark processing is offloaded to the Kubernetes cluster managed by Ilum.

Deploying Airflow​

note

To read how to enable the Airflow deployment, refer to the Production page.

Airflow is preconfigured to use the default port-forward method of connection. This means that even if you access Ilum via a different URL than localhost:9777, Airflow will still try to redirect you to the default URL. To avoid this, you can configure the Airflow base URL in the Helm values:

  airflow:
    config:
      api:
        base_url: "http://<your-address>:<your-port>/external/airflow"
Or for Airflow 2
  airflow:
    config:
      webserver:
        base_url: "http://<your-address>:<your-port>/external/airflow"

However, For Airflow 2 this should not necessary since the proxy_fix setting should be enabled by default, which should also fix the issue.

Quick Start​

After you enable Airflow, you can access it from the Ilum UI by clicking on the Airflow tab in the left sidebar.

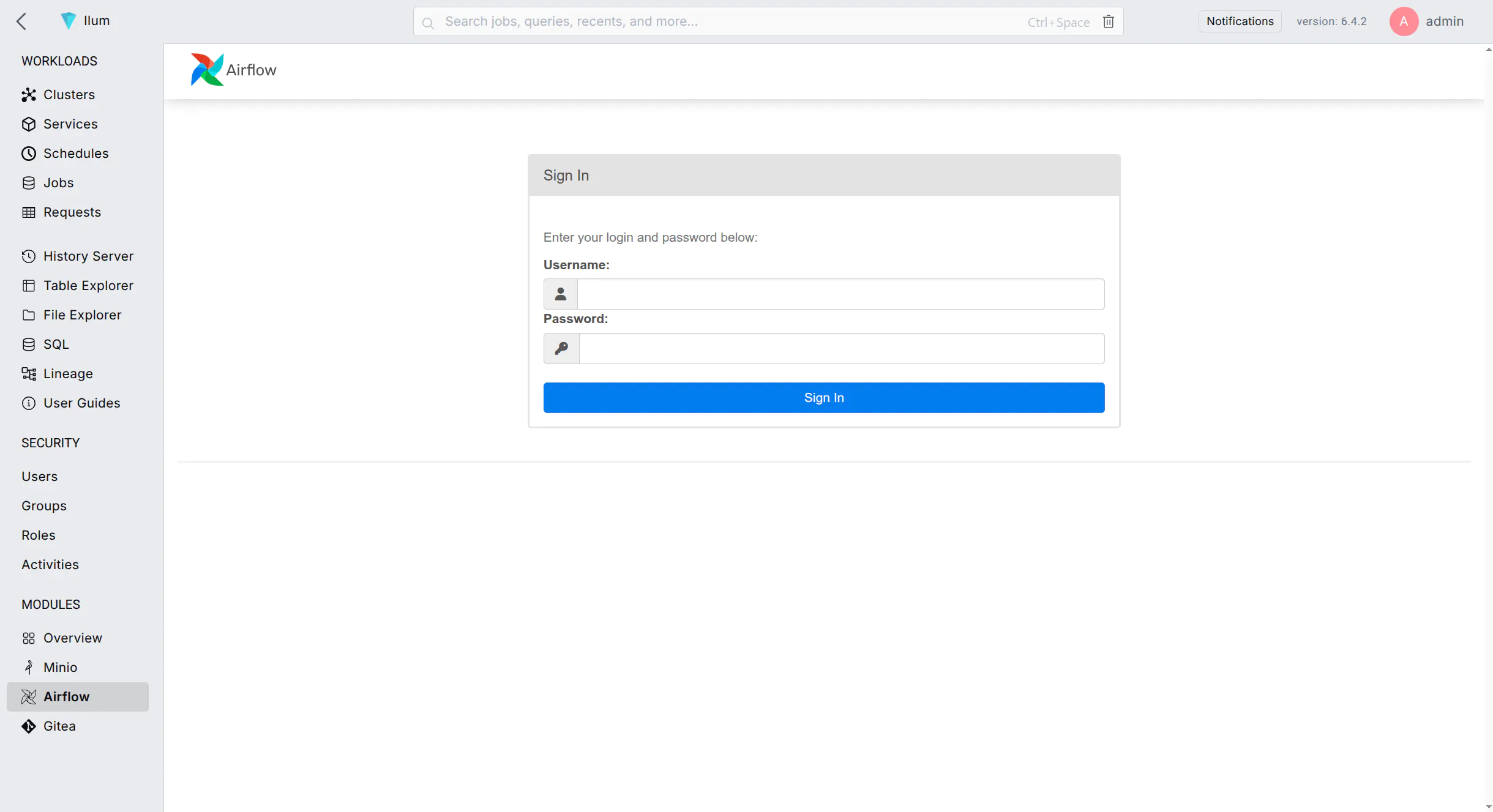

Airflow login screen You can log in with the admin:admin credentials

Airflow comes with a pre-built example DAG that can give you an idea of how to use it with Ilum.

Example DAG​

Example Airflow DAG

The example DAG has three interconnected tasks. Each DAG starts with an instance of the DAG class, which is the main entry point for defining the workflow:

with DAG(
    dag_id='example_ilum_livy_operator',
    default_args={'args': [10]},
    start_date=datetime(2023, 5, 1),
    catchup=False,
) as dag:

There is little happening here, so let’s look at the tasks defined in this DAG:

ilum_livy_jar_with_http_resource = LivyOperator(
    task_id='ilum_livy_jar_with_http_resource',
    file='https://ilum.cloud/release/latest/spark-examples_2.13-4.1.1.jar',
    num_executors=1,
    conf={
        'spark.shuffle.compress': 'false',
    },
    class_name='org.apache.spark.examples.SparkPi',
    args=[5],
    polling_interval=5,
    livy_conn_id='ilum-livy-proxy'
)

This task uses the LivyOperator to submit a Spark job to Ilum’s Livy Proxy. Livy proxy is a pre-configured connection to the Livy server that allows you to submit Spark jobs from Airflow.

LivyOperator Configuration Deep Dive​

The LivyOperator provides a direct mapping to Spark submission parameters. Understanding these parameters is key to running complex jobs.

ParameterDescription
fileRequired. The path to the file containing the application to execute. This must be accessible by the cluster (e.g., s3a://, http://, hdfs://). Local file paths will not work unless they exist on the Driver image.
class_nameThe name of the main class to run. Required for Java/Scala applications.
argsA list of arguments to be passed to the application.
jarsList of JARs to be used in this session.
py_filesList of Python files to be used in this session.
confA dictionary of Spark configuration properties. This is where you define resources and runtime behavior.
proxy_userUser to impersonate when running the job. Useful for multi-tenant environments where jobs run as specific service accounts.

Resource Allocation Example​

To control the resources allocated to your Spark job, use the conf dictionary:

conf={
    'spark.driver.cores': '1',
    'spark.driver.memory': '2g',
    'spark.executor.cores': '2',
    'spark.executor.memory': '4g',
    'spark.executor.instances': '3',
    'spark.kubernetes.container.image': 'custom-spark-image:latest'
}

Managing Job Dependencies​

Handling dependencies is a critical aspect of data engineering. Ilum supports several strategies via the LivyOperator.

Python Dependencies​

For Python jobs, you often need external libraries like numpy or pandas.

  1. pyRequirements (Recommended): Ilum creates a virtual environment on the fly.
    conf={
        'pyRequirements': 'numpy>=1.21.0,pandas'
    }
  2. PEX Files: You can package your entire environment into a .pex file and pass it via files.
  3. Custom Docker Image: Bake your dependencies into a custom Spark image and reference it via spark.kubernetes.container.image.

JAR Dependencies​

For Scala/Java jobs, you can include additional JARs:

jars=['s3a://my-bucket/libs/extra-lib-1.0.jar']

Complete Example with Dependencies​

The DAG below demonstrates dependent tasks and dependency management:

ilum_livy_python_pi_with_http_resource = LivyOperator(
    task_id='ilum_livy_python_pi_with_http_resource',
    file='https://raw.githubusercontent.com/apache/spark/master/examples/src/main/python/pi.py',
    polling_interval=10,
    livy_conn_id='ilum-livy-proxy',
)

# This task requires 'numpy' which is not in the base image
ilum_livy_python_with_additional_packages_with_http_resource = LivyOperator(
    task_id='ilum_livy_python_with_additional_packages_with_http_resource',
    file='https://raw.githubusercontent.com/apache/spark/master/examples/src/main/python/ml/correlation_example.py',
    polling_interval=10,
    livy_conn_id='ilum-livy-proxy',
    conf={
        'pyRequirements': 'numpy', # Dynamically install numpy
    },
)

# Define task dependencies
ilum_livy_jar_with_http_resource >> [ilum_livy_python_pi_with_http_resource, ilum_livy_python_with_additional_packages_with_http_resource]

This DAG illustrates the directed acyclic nature of Airflow, where tasks run only after their upstream dependencies succeed.

SparkSubmitOperator​

In addition to the LivyOperator, Airflow can submit Spark jobs directly to Kubernetes using the SparkSubmitOperator. This approach uses Spark's native spark-submit binary and bypasses the Livy proxy entirely, giving you full control over every Spark configuration flag.

When both Airflow and Gitea are enabled in the Ilum Helm chart, a ready-to-use example DAG (example_spark_submit) is automatically seeded into the Airflow DAG repository.

Prerequisites​

  1. Airflow and Gitea must both be enabled (the example DAG is only seeded when both are active):

    airflow:
      enabled: true
    gitea:
      enabled: true

  2. Airflow image must include Spark tooling. The default ilum/airflow image does not include spark-submit or the apache-airflow-providers-apache-spark provider. You must use the Spark-enabled image variant:

    airflow:
      images:
        airflow:
          repository: "ilum/airflow"
          tag: "3.1.8-spark4"

    The -spark4 image includes:

    • spark-submit binary
    • apache-airflow-providers-apache-spark (v5.6.0)
    • pyspark (v4.1.1)

Pre-configured Connection: spark_default​

Ilum automatically configures the AIRFLOW_CONN_SPARK_DEFAULT environment variable, which Airflow maps to a connection with conn_id="spark_default". The connection is defined in values.yaml as:

- name: AIRFLOW_CONN_SPARK_DEFAULT
  value: '{"conn_type": "spark", "host": "k8s://http://ilum-core", "port": 9888}'

This tells Airflow's SparkSubmitHook to construct: --master k8s://http://ilum-core:9888

  • Protocol: k8s:// — Spark's native Kubernetes submission mode
  • Host: http://ilum-core — the Ilum Core service endpoint (plain HTTP, not HTTPS)
  • Port: 9888 — Ilum Core's Spark submission port

Example DAG: example_spark_submit​

When both Airflow and Gitea are enabled, the Helm chart automatically seeds a spark_submit_example.py DAG into the Gitea airflow repository. This DAG runs SparkPi as a Kubernetes cluster-mode job.

from datetime import datetime
from airflow import DAG
from airflow.providers.apache.spark.operators.spark_submit import SparkSubmitOperator

with DAG(
    dag_id="example_spark_submit",
    default_args={
        "owner": "airflow",
        "depends_on_past": False,
        "email_on_failure": False,
        "email_on_retry": False,
        "retries": 0,
    },
    schedule=None,
    start_date=datetime(2023, 1, 1),
    catchup=False,
    tags=["spark-submit", "ilum", "example"],
) as dag:

    spark_pi = SparkSubmitOperator(
        task_id="spark_pi",
        conn_id="spark_default",
        application="https://ilum.cloud/release/latest/spark-examples_2.13-4.1.1.jar",
        java_class="org.apache.spark.examples.SparkPi",
        application_args=["100"],
        deploy_mode="cluster",
        name="spark-pi-airflow",
        conf={
            "spark.kubernetes.container.image": "<spark-image-from-values>",
            "spark.kubernetes.namespace": "<release-namespace>",
            "spark.kubernetes.authenticate.driver.serviceAccountName": "<release-name>-ilum-core-spark",
        },
    )

Key Parameters​

ParameterValueDescription
conn_id"spark_default"Uses the pre-configured AIRFLOW_CONN_SPARK_DEFAULT connection
applicationhttps://ilum.cloud/release/latest/spark-examples_2.13-4.1.1.jarThe Spark application JAR (SparkPi example)
java_classorg.apache.spark.examples.SparkPiMain class to execute
deploy_mode"cluster"Driver runs inside the Kubernetes cluster, not locally
name"spark-pi-airflow"Name prefix for the Spark driver pod
spark.kubernetes.container.imageFrom ilum-core.kubernetes.container.image in values.yamlThe Spark executor/driver Docker image (Helm-templated in the deployed DAG)
spark.kubernetes.namespaceRelease namespaceWhere Spark driver/executor pods are created (Helm-templated in the deployed DAG)
spark.kubernetes.authenticate.driver.serviceAccountName<release>-ilum-core-sparkServiceAccount with RBAC permissions to create Spark pods (Helm-templated in the deployed DAG)

Running the Example​

  1. Open the Airflow UI (accessible via the Ilum UI at /external/airflow/)
  2. Find the example_spark_submit DAG in the DAG list
  3. The DAG is paused by default — unpause it by toggling the switch
  4. Click "Trigger DAG" to run it manually (it has schedule=None, so it won't run on its own)
  5. Monitor the task in the Graph or Grid view
  6. Check the task logs to see spark-submit output and the Spark driver pod creation
  7. You can also observe the Spark driver pod in Kubernetes:
    kubectl get pods -n <namespace> | grep spark-pi-airflow

Writing Your Own SparkSubmitOperator DAGs​

To create a custom DAG, use the example as a template. Key points:

  1. Always use conn_id="spark_default" — this provides the correct --master URL
  2. Always set deploy_mode="cluster" — local mode won't work inside the Airflow pod
  3. Always include these conf entries:
    • spark.kubernetes.container.image — the Spark image for driver/executor pods
    • spark.kubernetes.namespace — must match your Ilum deployment namespace
    • spark.kubernetes.authenticate.driver.serviceAccountName — the Ilum Spark ServiceAccount (has RBAC to create pods)
  4. application can be:
    • An HTTP(S) URL to a JAR
    • An s3a:// path if your Spark image has S3 credentials configured
    • A local path inside the Spark image
  5. For PySpark, omit java_class and point application to a .py file:
    pyspark_pi = SparkSubmitOperator(
        task_id="pyspark_pi",
        conn_id="spark_default",
        application="https://raw.githubusercontent.com/apache/spark/master/examples/src/main/python/pi.py",
        application_args=["100"],
        deploy_mode="cluster",
        name="pyspark-pi-airflow",
        conf={
            "spark.kubernetes.container.image": "<spark-image-from-values>",
            "spark.kubernetes.namespace": "<release-namespace>",
            "spark.kubernetes.authenticate.driver.serviceAccountName": "<release-name>-ilum-core-spark",
        },
    )
    Note that java_class is omitted and application points to a .py file.
  6. Additional useful conf options:
    • spark.executor.instances — number of executors
    • spark.driver.memory / spark.executor.memory — resource allocation
    • spark.kubernetes.container.image.pullPolicy — set to Always for dev images
    • spark.ilum.cluster — logical cluster name in Ilum. Defaults to default if omitted. Set this if you want the job to appear under a specific cluster in the Ilum UI

SparkSubmitOperator Troubleshooting​

SymptomCauseFix
spark-submit: command not foundUsing the default ilum/airflow imageSwitch to the -spark4 image variant
NotSslRecordException: not an SSL/TLS recordConnection uses https but ilum-core serves plain HTTP on port 9888Ensure AIRFLOW_CONN_SPARK_DEFAULT uses http, not https
Connection refused on port 9888ilum-core is not runningVerify with kubectl get pods | grep ilum-core
Spark driver pod stuck in PendingServiceAccount missingCheck with kubectl get sa <release>-ilum-core-spark
DAG not visible in AirflowGitea or Airflow not enabled, or repo-init job failedEnsure both are enabled; check kubectl logs -l job-name=ilum-gitea-airflow-repo-init-1

Customizing Airflow​

While Ilum provides a robust default image, production environments often require customization. Common use cases include:

  • Installing additional Python libraries for the PythonOperator (e.g., scikit-learn for local processing).
  • Adding Cloud providers (e.g., Google Cloud, Azure) for connecting to external data sources.
  • Configuring custom Secrets Backends (e.g., HashiCorp Vault, AWS Secrets Manager).

Default Image Contents​

Ilum’s Airflow image extends the official Airflow image with:

  • apache-airflow-providers-apache-livy: Essential for Spark job submission via Ilum.
  • apache-airflow-providers-amazon: For S3-compatible storage interaction.
  • apache-airflow-providers-cncf-kubernetes: For orchestrating pods.
  • apache-airflow-providers-fab: For Ilum OAuth2 integration.

Extending the Image​

To add your own dependencies, create a Dockerfile derived from the Ilum image.

FROM ilum/airflow:3.0.3

# Switch to root to install system dependencies if needed
USER root
RUN apt-get update && apt-get install -y --no-install-recommends \
    build-essential \
  && apt-get autoremove -yqq --purge \
  && apt-get clean \
  && rm -rf /var/lib/apt/lists/*

# Switch back to airflow user for python packages
USER airflow
RUN pip install --no-cache-dir \
    apache-airflow-providers-google \
    pandas==2.0.0
note

While basing on the official Airflow image is also possible, it is not recommended because it does not include our customizations. Expect issues when using the official image directly.

When changing the Airflow image in Helm, you need to remember about changing the following values:

airflow:
  airflowVersion: "3.0.3" # Changes compatibility options inside the chart
  images:
    airflow:
      repository: "ilum/airflow" # Your custom image repository
      tag: "3.0.3" # Your custom image tag
  apiServer: # Only applicable when using Airflow >= 3.0.0
    extraInitContainers: # You must overwrite the whole section, since it is a list
      - name: create-admin-user
        image: "ilum/airflow:3.0.3" # Your custom image
        imagePullPolicy: IfNotPresent
        command: ["/bin/bash", "/scripts/init.sh"]
        volumeMounts:
          - name: ilum-airflow-create-user-secret
            mountPath: /scripts
          - name: config
            mountPath: /opt/airflow/airflow.cfg
            subPath: airflow.cfg
  webserver: # Only applicable when using Airflow < 3.0.0
    extraInitContainers: # You must overwrite the whole section, since it is a list
      - name: create-admin-user
        image: "ilum/airflow:2.9.3"
        imagePullPolicy: IfNotPresent
        command: [ "/bin/bash", "/scripts/init.sh" ]
        volumeMounts:
          - name: ilum-airflow-create-user-secret
            mountPath: /scripts
          - name: config
            mountPath: /opt/airflow/airflow.cfg
            subPath: airflow.cfg

ilum-ui:
  runtimeVars:
    airflowUrl: "http://ilum-airflow-api-server:8080" # When using Airflow >= 3.0.0
    # airflowUrl: "http://ilum-airflow-webserver:8080" # or when using Airflow < 3.0.0

Compatibility with Airflow 2​

The chart Ilum uses supports backwards compatibility with Airflow 2, but it is recommended to use Airflow 3 for new deployments.

To use Airflow 2, change the values like mentioned above. For more convenience, you can use the ilum/airflow:2.9.3 image.

Logging and Observability​

Effective debugging requires access to logs at multiple levels. In an Ilum + Airflow setup, logs are distributed:

  1. Airflow Task Logs: Generated by the Airflow Worker/Pod.
  2. Spark Driver/Executor Logs: Managed by Ilum, viewable in the Ilum UI.

Enabling Persistent Airflow Logs​

By default, Airflow logs are ephemeral. When a KubernetesExecutor pod finishes, its logs are lost. To retain them for historical analysis in the Airflow UI, you must enable persistence.

Requirement: Your Kubernetes cluster must support ReadWriteMany (RWX) access mode for Persistent Volumes (e.g., NFS, AWS EFS, Google Filestore). This is required because multiple worker pods write logs simultaneously, while the Webserver pod reads them.

airflow:
  logs:
    persistence:
      enabled: true
      size: 10Gi
      storageClassName: "standard-rwx" # Ensure this class supports RWX
warning

Enabling persistence on a cluster without ReadWriteMany support will cause pods to hang in Pending state.

Correlating Logs​

To debug a failed Spark job:

  1. Open the Airflow UI and check the task logs.
  2. Look for the applicationId (e.g., spark-application-12345) in the LivyOperator output.
  3. Go to the Ilum UI, search for that ID, and view the full Spark Driver and Executor logs.

Continuous Deployment (Git Sync)​

For production workflows, manually uploading DAGs is inefficient. Ilum supports the Git Sync pattern, which uses a sidecar container to synchronize DAGs from a Git repository to a shared volume.

How it Works​

  1. A "git-sync" sidecar container starts alongside the Airflow Scheduler, Webserver, and Workers.
  2. It periodically pulls the specified Git branch (e.g., every 60 seconds).
  3. If changes are detected, it updates the shared volume dags folder.
  4. Airflow picks up the changes automatically.

Configuration​

This feature is pre-integrated. When you enable Gitea within Ilum, a default repository is automatically synced. For external repositories (GitHub, GitLab), configure the airflow.dags.gitSync section in your Helm values:

airflow:
  dags:
    gitSync:
      enabled: true
      repo: "https://github.com/my-org/my-dags.git"
      branch: "main"
      # For private repos, use a Kubernetes Secret
      # sshKeySecret: "my-ssh-secret"

Using Airflow with Ilum OAuth2 provider​

Airflow supports Ilum OAuth2 provider by using custom authentication backend and should be plug-and-play as soon as you enable both Airflow and the OAuth2 provider.

Because Airflow does not support OAuth2 out of the box, the integration is not as smooth as the default internal authentication.

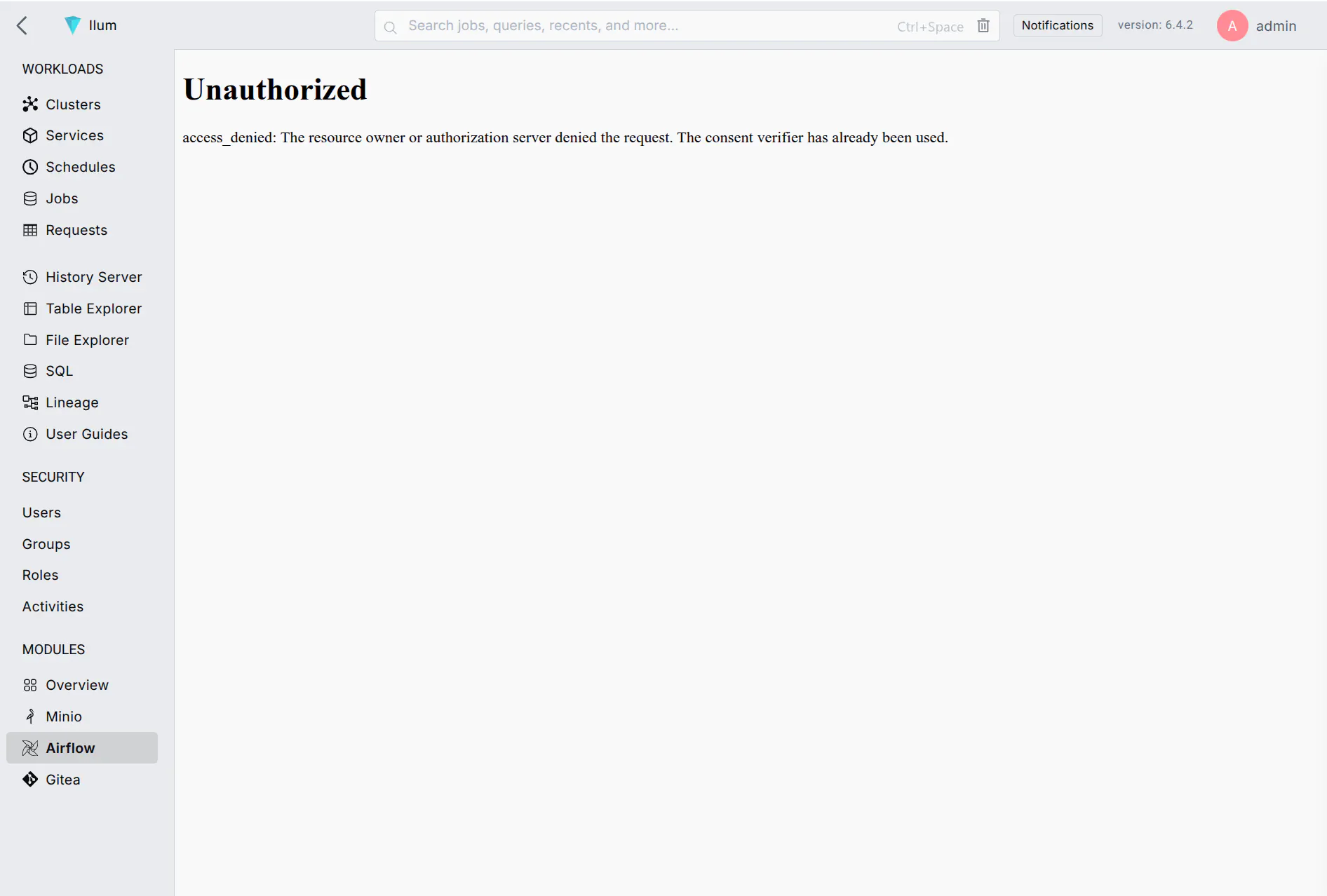

Ilum OAuth provider roughness You can encounter alerts such as this one. A page refresh fixes everything

The errors you might see initially include CSRF verification failed, access_denied or 502 Bad Gateway among others.

Last updated on
