Running Spark Jobs in Different Namespaces

This guide explains how to configure Ilum to run Spark jobs in namespaces different from the default application deployment namespace. By default, Ilum creates a default cluster that runs jobs within the same namespace as the Ilum deployment, but you can modify Helm values to enable job execution in arbitrary namespaces.

Quick Answer

To run Spark jobs in a separate namespace with Ilum:

1. Upgrade Helm with upgradeClusterOnStartup=true.
2. Configure FQDNs for services (e.g., ilum-minio.ilum-namespace).
3. Update Cluster Config in the UI to point to the new namespace.

Why Run Spark Jobs in Different Namespaces?

Default Behavior

By default, Ilum:

1. Creates a default Kubernetes cluster for running Spark jobs.
2. Deploys all Spark resources (drivers, executors, ConfigMaps) in the same namespace as the Ilum installation ({{ .Release.Namespace }}).

However, there are scenarios where you might want to run Spark jobs in different namespaces:

• Multi-tenancy: Isolating different teams or projects.
• Resource management: Applying different resource quotas and limits per namespace.
• Security: Implementing namespace-level RBAC policies.
• Compliance: Meeting organizational namespace separation requirements.

Key Configuration Parameters

The primary Helm values that control namespace behavior are:

Parameter	Description	Default Value
IMMUTABLE ENVIRONMENT VARIABLE	Namespace where Spark resources are deployed	{{ .Release.Namespace }}
kubernetes.initClusterOnStartup	Initialize default cluster on startup	true
kubernetes.upgradeClusterOnStartup	Upgrade cluster configuration from Helm values	false

How to Configure Spark for Multiple Namespaces

To enable Spark jobs to run in a different namespace, follow these configuration steps:

1. Helm Configuration

Update your Helm release to enable cluster upgrades and configure service URLs to point to the correct namespace (using FQDNs).

Helm Upgrade Command

helm upgrade ilum ilum/ilum \
  --set ilum-core.kubernetes.upgradeClusterOnStartup=true \
  --set ilum-core.kubernetes.s3.host=ilum-minio.{ILUM_DEPLOYMENT_NAMESPACE} \
  --set ilum-core.job.openLineage.transport.serverUrl="http://ilum-marquez.{ILUM_DEPLOYMENT_NAMESPACE}:9555" \
  --set ilum-core.metastore.hive.address="thrift://ilum-hive-metastore.{ILUM_DEPLOYMENT_NAMESPACE}:9083" \
  --set ilum-core.historyServer.address="http://ilum-history-server.{ILUM_DEPLOYMENT_NAMESPACE}:9666" \
  --set ilum-core.grpc.job.host="ilum-grpc.{ILUM_DEPLOYMENT_NAMESPACE}" \
  --reuse-values

Why is this needed?

When running jobs in a different namespace, short DNS names (like ilum-minio) won't resolve. You must use the fully qualified domain name (e.g., ilum-minio.ilum-namespace).

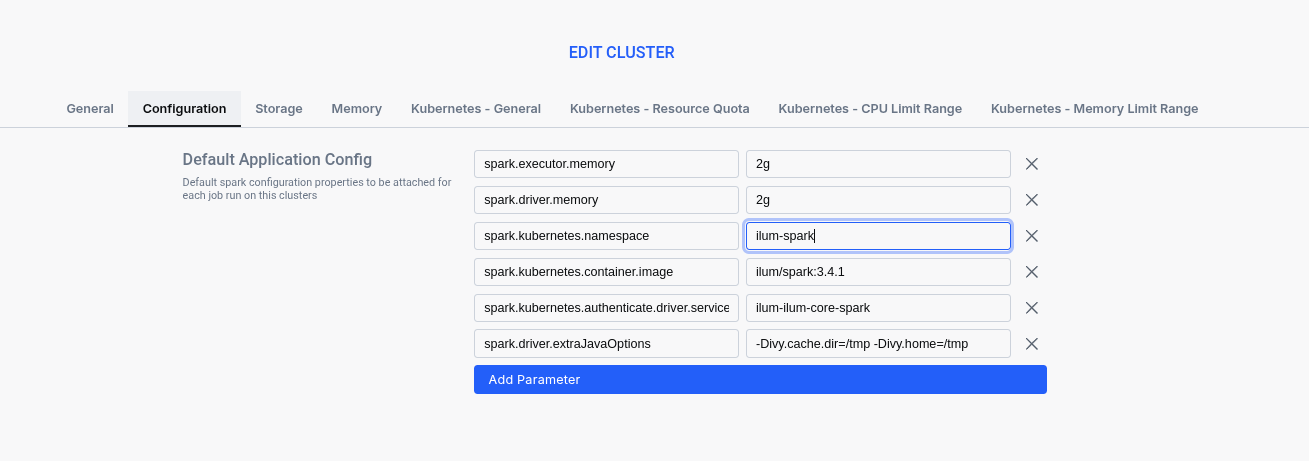

2. UI Configuration

After updating Helm, you must update the default cluster configuration in the Ilum UI to point to the new namespace.

1. Go to Clusters.
2. Edit your Default Cluster.
3. Change the Namespace field to your target namespace.

Namespace Creation and Management

Depending on your security policies, you can rely on Ilum to automatically create namespaces or create them manually.

Method A: Automatic Creation (Standard RBAC)

If your Ilum installation uses standard RBAC permissions (ClusterRole), Ilum can automatically handle namespace creation for you.

• How it works: When you submit a job to a cluster configured with a non-existent namespace, Ilum attempts to create that namespace on the fly.
• Requirements: The ilum-core ServiceAccount must have create permissions for namespaces at the cluster level.
• Pros: Simplifies operations; no manual Kubernetes intervention needed.
• Cons: Requires broader permissions.

Method B: Manual Creation (Restricted RBAC)

If you are running Ilum with restricted RBAC (where the core service account cannot create namespaces), you must create the namespace and resources manually before running any jobs.

RBAC Conflicts

If ilum-core.rbac.restricted=true is set in Helm, automatic namespace creation will fail. You must use this manual method.

Steps for Manual Setup

1. Create the target namespace:

   Create Namespace

   kubectl create namespace spark-jobs

2. Create Spark-related RBAC resources: Spark drivers need permissions to create executors in the new namespace. Apply the following manifest (replace <target-namespace>):

   spark-rbac.yaml

   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: spark
     namespace: <target-namespace>
   ---
   apiVersion: rbac.authorization.k8s.io/v1
   kind: Role
   metadata:
     name: spark-role
     namespace: <target-namespace>
   rules:
   - apiGroups: [""]
     resources: ["pods", "services", "configmaps", "persistentvolumeclaims"]
     verbs: ["create", "get", "list", "watch", "delete"]
   ---
   apiVersion: rbac.authorization.k8s.io/v1
   kind: RoleBinding
   metadata:
     name: spark-role-binding
     namespace: <target-namespace>
   subjects:
   - kind: ServiceAccount
     name: spark
     namespace: <target-namespace>
   roleRef:
     kind: Role
     name: spark-role
     apiGroup: rbac.authorization.k8s.io

3. Configure your default cluster in Ilum UI to use this namespace and Service Account:

   • Go to Clusters.
   • Edit your Default Cluster.
   • Change the Namespace field to your target namespace (e.g., spark-jobs).
   • Change the Service Account to spark.



Frequently Asked Questions (FAQ) & Troubleshooting

1. Why do my jobs fail to start in the target namespace?

Symptoms: Spark jobs fail with permission errors or "namespace not found" errors.

Solutions:

• Verify the namespace exists: kubectl get namespace <namespace-name>
• Check RBAC permissions for the Ilum service account
• Ensure kubernetes.upgradeClusterOnStartup=true is set

2. Why can't my jobs access storage buckets (S3/MinIO)?

Symptoms: Jobs fail with storage access errors or "bucket not found" errors.

Solutions:

• Verify storage configuration parameters are correct
• Check that storage buckets/containers exist and are accessible
• Ensure storage credentials are properly configured

3. What happens if I exceed the namespace resource quota?

Symptoms: Jobs fail with "exceeded quota" errors.

Solutions:

• Check namespace resource quotas: kubectl describe quota -n <namespace>
• Adjust resource requests in job configurations
• Increase namespace resource limits if needed

4. Why are jobs still running in the default namespace after configuration?

Symptoms: Jobs still run in the default namespace despite configuration changes.

Solutions:

• Ensure kubernetes.upgradeClusterOnStartup=true is set

• Restart Ilum core pods to apply configuration changes:

  Rollout Restart

  kubectl rollout restart deployment/ilum-core

• Verify configuration in Ilum UI under Clusters section

5. How do I fix network timeouts between namespaces?

Symptoms: Jobs fail with network timeouts or connection refused errors.

Solutions:

• Verify network policies allow communication between namespaces
• Check service discovery and DNS resolution
• Ensure required services are accessible from the target namespace

Verification Commands

Use these commands to verify your configuration:

Verification

# Check if namespace exists
kubectl get namespace <target-namespace>

# Verify RBAC permissions
kubectl auth can-i create pods --namespace=<target-namespace> --as=system:serviceaccount:<ilum-namespace>:ilum-core

# Check resource quotas and limits
kubectl describe quota -n <target-namespace>
kubectl describe limitrange -n <target-namespace>

# Monitor job creation
kubectl get pods -n <target-namespace> -w

# Check Ilum core logs
kubectl logs -f deployment/ilum-core -n <ilum-namespace>

Best Practices

1. Namespace Naming: Use descriptive names that reflect the purpose (e.g., spark-production, spark-dev, team-alpha-spark)
2. Resource Planning: Set appropriate resource quotas and limits based on expected workload
3. Security: Implement proper RBAC policies and network policies for namespace isolation
4. Monitoring: Set up monitoring and alerting for namespace-specific metrics
5. Documentation: Document namespace purposes and configurations for team reference
6. Testing: Test namespace configurations in development environments before applying to production

Related Configuration

For additional configuration options, refer to:

• Ilum Core Configuration - Complete Helm values reference
• Resource Control - Kubernetes resource management
• Production Deployment - Production environment setup
• Security - Security and authentication

This configuration enables flexible namespace management while maintaining the full functionality of Ilum's Spark job execution capabilities.
