Orchestrate dbt with Airflow on Spark: A Complete Guide

Quick Start (TL;DR)

How do I run dbt on Spark with Airflow?

Install Ilum with the Spark SQL (Thrift) server and Airflow on the 3.1.1-dbt image:

helm install
helm install ilum ilum/ilum \
  --set ilum-hive-metastore.enabled=true \
  --set ilum-core.metastore.enabled=true \
  --set ilum-core.metastore.type=hive \
  --set ilum-core.sql.enabled=true \
  --set ilum-sql.enabled=true \
  --set airflow.enabled=true \
  --set airflow.images.airflow.tag=3.1.1-dbt

An example dbt project is pre-loaded and synced to Airflow, where Astronomer Cosmos generates one task per dbt model and test. Trigger the ilum_dbt_thrift_pipeline DAG: the models run on the Ilum Spark cluster through the spark_thrift_default connection on port 10009.

This guide demonstrates how to orchestrate scalable dbt pipelines on Ilum's Apache Spark cluster using Apache Airflow and Astronomer Cosmos. You will learn how to build a robust medallion architecture (Bronze → Silver → Gold) utilizing Kubernetes-native compute for efficient data transformation. We will cover automatic DAG generation, data quality testing, and incremental processing strategies.

tip

For a comprehensive deep-dive into the architecture, benefits, and strategic considerations of running dbt on Spark with Airflow, see our detailed blog post: Orchestrate dbt on Spark with Airflow: A Guide to Modern Data Engineering on Ilum.

Prerequisites for Airflow and dbt on Ilum​

  • Ilum version 6.6.2 or later
  • Airflow enabled with the 3.1.1-dbt image
  • Spark SQL (Thrift Server) or Spark Connect enabled
  • Basic familiarity with dbt and Airflow concepts

dbt-Airflow-Spark Architecture Overview​

The integration combines four key components:

ComponentTechnology
Compute EngineApache Spark on Ilum (Kubernetes-native)
Data Modelingdbt-spark (dbt-core + Spark adapter)
OrchestrationApache Airflow 3.1 with KubernetesExecutor
DAG GenerationAstronomer Cosmos

Workflow: Git repository → gitSync → Airflow → Cosmos (auto-generates DAG) → Spark SQL / Spark Connect → Ilum Spark Cluster

Quick Start: Deploying dbt Pipelines​

1. Enable Airflow with dbt Support​

Install Ilum with Airflow and dbt pre-configured:

helm install
helm install ilum ilum/ilum \
  --set ilum-hive-metastore.enabled=true \
  --set ilum-core.metastore.enabled=true \
  --set ilum-core.metastore.type=hive \
  --set ilum-core.sql.enabled=true \
  --set ilum-sql.enabled=true \
  --set airflow.enabled=true \
  --set airflow.images.airflow.tag=3.1.1-dbt
Pre-loaded Example

When using the 3.1.1-dbt image tag, the complete dbt project and DAG described in this guide are automatically pre-loaded into the internal Gitea repository and synced to Airflow. You can trigger the example pipeline immediately after installation.

2. Access Airflow​

Navigate to the Airflow UI via the Ilum console. The default credentials are typically admin:admin.

3. Verify the Connection​

Starting from Ilum 6.6.2, the spark_thrift_default connection is automatically configured. Verify it exists:

Admin → Connections → Search for spark_thrift_default

If missing, create it manually:

FieldValue
Connection IDspark_thrift_default
Connection TypeSpark or spark_sql
Hostilum-sql-thrift-binary.<NAMESPACE>.svc.cluster.local
Port10009

4. Trigger the DAG​

Find ilum_dbt_thrift_pipeline in the Airflow UI and trigger it manually. Monitor the Graph View to see the auto-generated task dependencies.

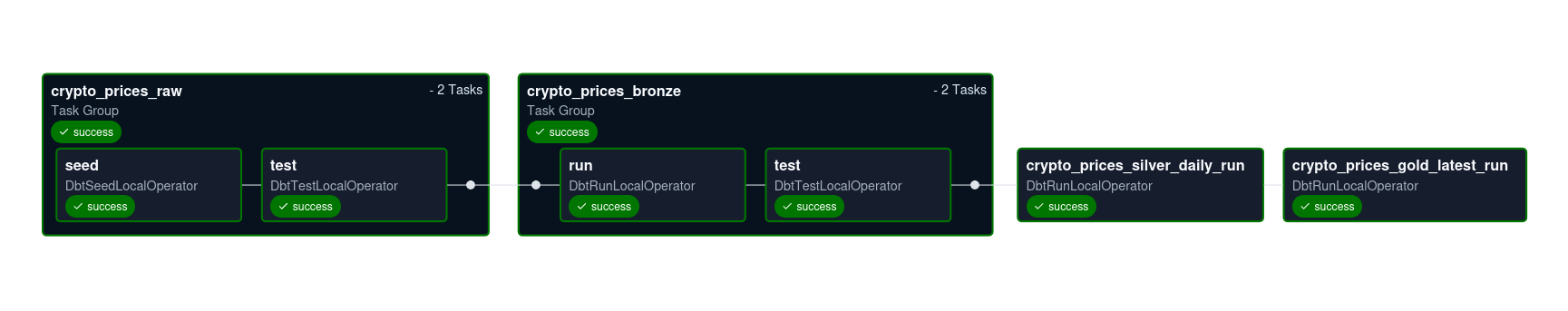

Airflow DAG Graph generated by Astronomer Cosmos showing dbt model dependencies The Airflow DAG automatically generated by Astronomer Cosmos, reflecting the dbt model dependencies.

Project Structure​

The dbt project follows a standard medallion architecture:

Directory Structure
ilum_dbt_project/
├── dbt_project.yml
├── packages.yml
├── seeds/
│   └── crypto_prices_raw.csv
└── models/
    ├── bronze/
    │   └── crypto_prices_bronze.sql
    ├── silver/
    │   └── crypto_prices_silver_daily.sql
    ├── gold/
    │   └── crypto_prices_gold_latest.sql
    └── schema.yml

dbt Configuration​

dbt_project.yml​

The central configuration file defines project metadata, paths, and layer-specific settings:

dbt_project.yml
name: "ilum_dbt_project"
version: "1.0.0"
config-version: 2

profile: "ilum_dbt_project"   # must match ProfileConfig.profile_name

model-paths: ["models"]
seed-paths: ["seeds"]
macro-paths: ["macros"]
test-paths: ["tests"]

models:
  ilum_dbt_project:
    +materialized: table
    bronze:
      +tags: ["bronze"]
    silver:
      +tags: ["silver"]
    gold:
      +tags: ["gold"]

seeds:
  ilum_dbt_project:
    +column_types:
      date: date
      symbol: string
      price_usd: double
      volume_usd: double
      market_cap_usd: double
    crypto_prices_raw:
      +pre-hook:
        - "{{ drop_this_seed() }}"

Key features:

  • Tags enable selective execution: dbt run --select tag:gold
  • Column types ensure correct Spark table schemas
  • Pre-hook drop_this_seed() provides idempotent seed loading for demos

Medallion Architecture Layers​

Bronze Layer: Type Normalization​

File: models/bronze/crypto_prices_bronze.sql

Converts raw seed data into typed, normalized tables with incremental processing:

models/bronze/crypto_prices_bronze.sql
{{ config(
    materialized='incremental',
    unique_key=['date', 'symbol']
) }}

select
  cast(date as date)         as date,
  upper(symbol)              as symbol,
  cast(price_usd as double)  as price_usd,
  cast(volume_usd as double) as volume_usd,
  cast(market_cap_usd as double) as market_cap_usd
from {{ ref('crypto_prices_raw') }}

{% if is_incremental() %}
where date > (select max(date) from {{ this }})
{% endif %}

Benefits:

  • Only processes new records after initial load
  • Reduces compute costs for large datasets

Silver Layer: Data Enrichment​

File: models/silver/crypto_prices_silver_daily.sql

Adds 7-day moving averages using Spark window functions:

models/silver/crypto_prices_silver_daily.sql
{{ config(materialized='table') }}

select
  date,
  symbol,
  price_usd,
  volume_usd,
  market_cap_usd,
  avg(price_usd) over (
    partition by symbol
    order by date
    rows between 6 preceding and current row
  ) as price_usd_7d_avg,
  avg(volume_usd) over (
    partition by symbol
    order by date
    rows between 6 preceding and current row
  ) as volume_usd_7d_avg
from {{ ref('crypto_prices_bronze') }}

Gold Layer: Business-Ready Views​

File: models/gold/crypto_prices_gold_latest.sql

Produces analytics-ready data showing the latest 30 days per symbol:

models/gold/crypto_prices_gold_latest.sql
{{ config(materialized='table') }}

with ranked as (
  select
    *,
    row_number() over (
      partition by symbol
      order by date desc
    ) as rn
  from {{ ref('crypto_prices_silver_daily') }}
)

select
  date,
  symbol,
  price_usd,
  price_usd_7d_avg,
  volume_usd_7d_avg,
  market_cap_usd
from ranked
where rn <= 30

Data Quality Tests​

Define tests in models/schema.yml to create quality gates:

models/schema.yml
version: 2

seeds:
  - name: crypto_prices_raw
    columns:
      - name: date
        tests: [not_null]
      - name: symbol
        tests: [not_null]
      - name: price_usd
        tests: [not_null]

models:
  - name: crypto_prices_bronze
    description: "Bronze layer - typed and normalized crypto prices."
    columns:
      - name: date
        tests: [not_null]
      - name: symbol
        tests: [not_null]
      - name: price_usd
        tests: [not_null]

In Airflow: Cosmos converts each test into a separate task that blocks downstream models if it fails.

Generating Airflow DAGs with Cosmos​

File: dags/ilum_dbt_thrift.py

dags/ilum_dbt_thrift.py
from datetime import datetime, timedelta
import os
from airflow.configuration import conf
from cosmos import DbtDag, ProjectConfig, ProfileConfig, ExecutionConfig
from cosmos.profiles import SparkThriftProfileMapping

DAGS_FOLDER = conf.get("core", "dags_folder")
DBT_PROJECT_PATH = os.path.join(DAGS_FOLDER, "ilum_dbt_project")
DBT_BIN = "/home/airflow/.local/bin/dbt"

profile_config = ProfileConfig(
    profile_name="ilum_dbt_project",
    target_name="prod",
    profile_mapping=SparkThriftProfileMapping(
        conn_id="spark_thrift_default",
        profile_args={
            "schema": "default",
            "threads": 4,
        },
    ),
)

dbt_dag = DbtDag(
    project_config=ProjectConfig(
        dbt_project_path=DBT_PROJECT_PATH,
    ),
    profile_config=profile_config,
    execution_config=ExecutionConfig(
        dbt_executable_path=DBT_BIN,
    ),
    dag_id="ilum_dbt_thrift_pipeline",
    schedule="@daily",
    start_date=datetime(2024, 1, 1),
    catchup=False,
    default_args={
        "owner": "data-team",
        "retries": 2,
        "retry_delay": timedelta(minutes=5),
    },
)

How it works:

  • SparkThriftProfileMapping uses the Airflow connection spark_thrift_default
  • Cosmos scans the dbt project and auto-generates tasks for each model, seed, and test
  • Dependencies mirror dbt's ref() relationships

Thrift vs Spark Connect​

AspectThrift ServerSpark Connect
EndpointCentral SQL server (shared)Per-job endpoint (isolated)
Use caseMultiple tools sharing one endpointIsolated compute per project
ProtocolJDBC/ThriftgRPC (native Spark API)
ConnectionStable service nameDynamic job-based URL

Tracking Data Lineage and Dependencies​

Once the pipeline runs successfully, tables are stored in the Hive Metastore and accessible across Ilum components:

  • Ilum SQL: Query tables directly
  • Jupyter Notebooks: Analyze data interactively
  • Spark jobs: Use as input for other pipelines
  • Lineage View: Visualize table dependencies in Ilum UI

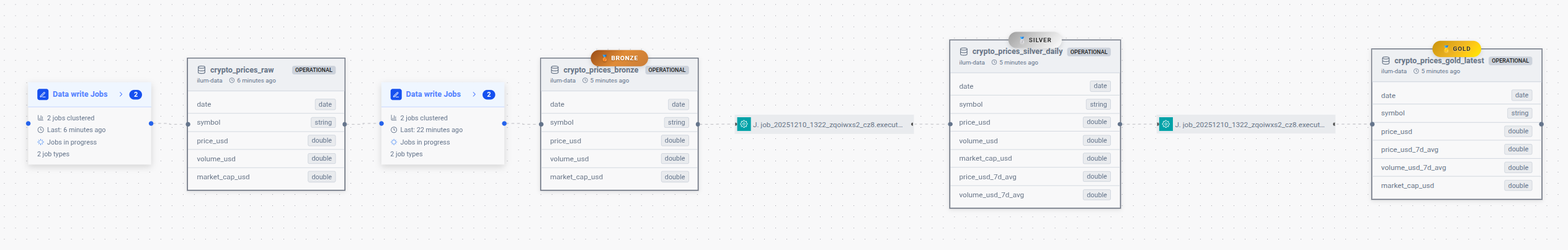

Ilum data lineage view showing medallion architecture Figure 2: The Ilum Data Lineage view visualizing the full medallion architecture (Bronze → Silver → Gold) and table dependencies.

Key Benefits​

FeatureBenefit
No dbt CloudFully open-source, no subscription costs
Medallion patternClean data architecture (bronze → silver → gold)
Incremental modelsProcess only new data, reduce compute costs
Quality gatesdbt tests block downstream if data fails
KubernetesExecutorEach task isolated in separate pod
gitSyncCode changes auto-deployed from Gitea
Auto DAG generationCosmos creates tasks from dbt models automatically
Full lineageTrack model dependencies in Airflow UI and Ilum

Troubleshooting​

Click to view troubleshooting steps

Connection Errors​

If you see failed to resolve sockaddr errors in dbt logs:

[Errno -2] Name or service not known

Solution: Verify the Thrift service exists:

Verify Thrift Service
kubectl get svc -n <NAMESPACE> | grep thrift

Ensure the connection host matches the service name exactly.

DAG Not Appearing​

If the DAG doesn't show up in Airflow:

  1. Check gitSync logs to ensure the dbt project is synced
  2. Verify the DBT_PROJECT_PATH points to the correct directory
  3. Look for parsing errors in Airflow logs

Tests Failing​

If dbt tests fail unexpectedly:

  1. Check the test task logs in Airflow
  2. Query the table directly via Ilum SQL to verify data quality
  3. Adjust test thresholds or fix upstream data issues

Frequently Asked Questions​

Which dbt adapter is used to run dbt on Spark?

The pipeline uses dbt-spark, dbt-core with the Spark adapter. It connects either to the Spark Thrift Server (ilum-sql-thrift, port 10009) or to a Spark Connect endpoint (port 15002), and the SQL runs on the Ilum Spark cluster.

Should dbt connect through the Thrift Server or Spark Connect?

The Thrift Server is a central, shared SQL endpoint with a stable service name, suited to several tools using one endpoint. Spark Connect provides an isolated, per-job endpoint over gRPC, suited to dedicated compute per project. See Thrift vs Spark Connect.

How are Airflow DAGs created from a dbt project?

Astronomer Cosmos parses the dbt project and generates an Airflow DAG with one task per model and per test, preserving ref() dependencies. A failing test blocks the downstream models.

Is dbt Cloud required?

No. The stack is fully open source: dbt-core, dbt-spark, Apache Airflow and Astronomer Cosmos running on Kubernetes, without a dbt Cloud subscription.

Which Ilum version is required?

Ilum 6.6.2 or later. From 6.6.2 the spark_thrift_default Airflow connection is configured automatically.
